BEAM

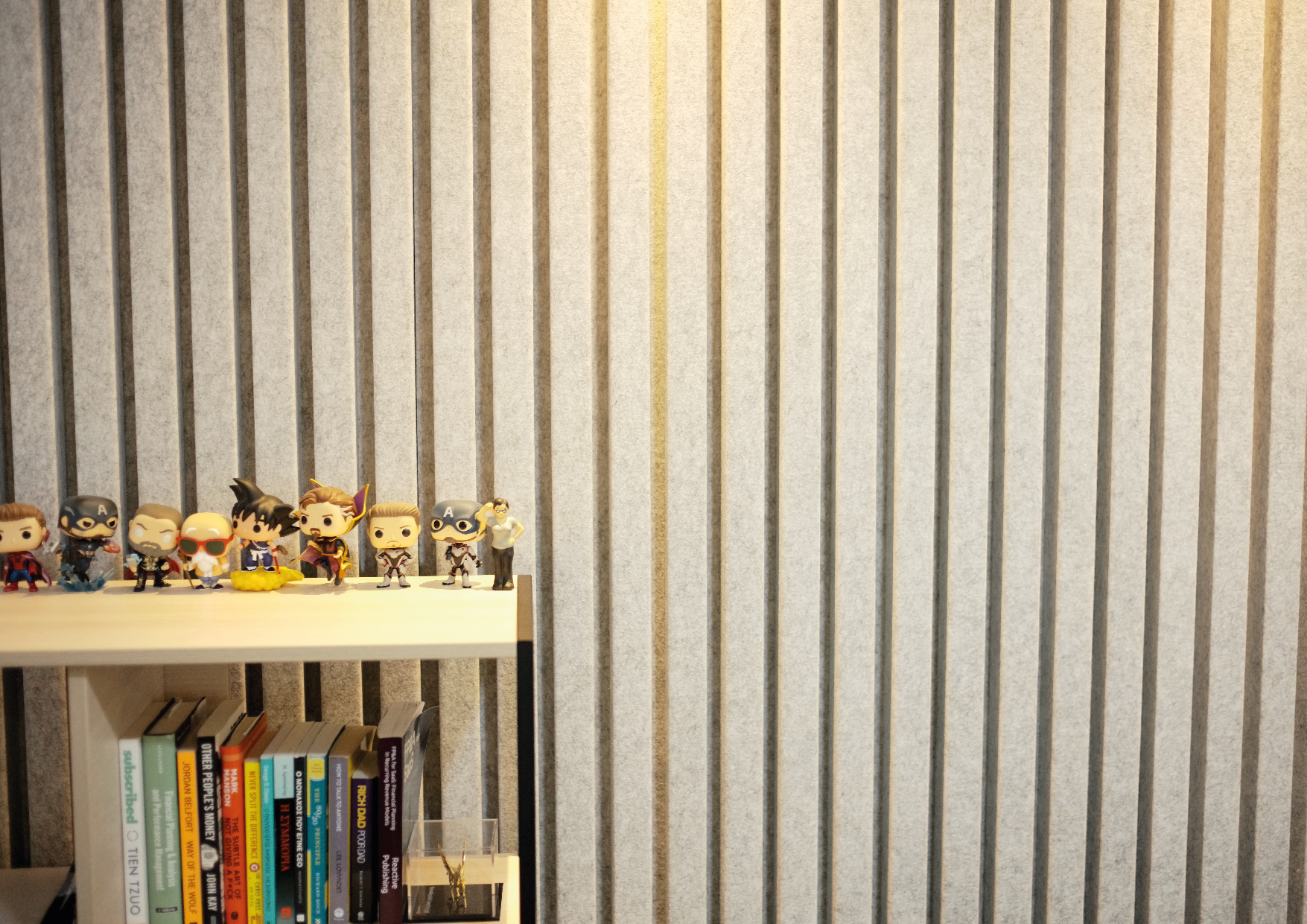

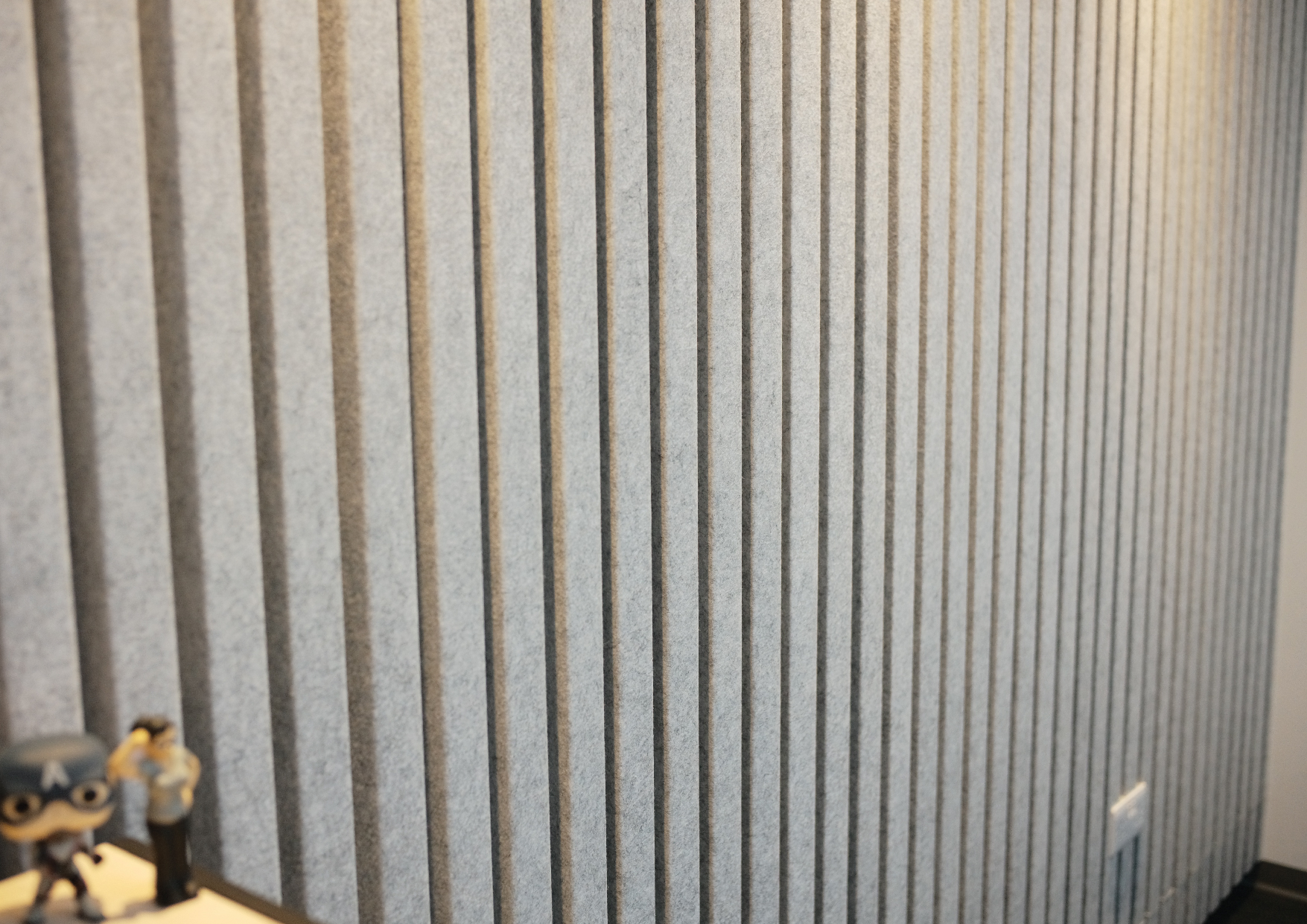

EXTRUDED acoustic panels are manufactured from recycled PET, offering an environmentally responsible solution for enhancing acoustic comfort. Designed for installation on both walls and ceilings, these panels deliver high sound absorption while elevating the visual character of interior spaces.
Suitable for a wide range of environments—including residential, commercial, and specialized applications—EXTRUDED panels combine reliable acoustic performance with modern design flexibility.
Available in three distinct shapes and formats, the panels are engineered for seamless edge-to-edge installation without visible joints. This allows for the creation of continuous, uniform surfaces across walls and ceilings, resulting in a clean and refined architectural finish.
EXTRUDED panels provide a visually striking solution for wall and ceiling coverings, balancing acoustic efficiency, design versatility, and cost-effectiveness—making them an ideal choice for contemporary interior projects.
VIEW

AVAILABLE SIZES
Module size:
240cm x 60cm
Thickness of baffles:
12mm
Strip Height:
7.2cm
Strip thickness:
2.5cm
Gap between baffles:
5cm
TECHNICAL DATA
TECHNICAL SPECIFICATIONS
INSTALLATION
Installation can be carried out by adhesive bonding to walls or ceilings.
SUSTAINABILITY
Panels manufactured from 100% polyester fibre, containing a minimum of 75% post-consumer recycled PET sourced from recycled plastic bottles.
NON TOXIC
Tested according to BS EN 717-1 (E0) for formaldehyde emissions. The panels contain no chemical binders or formaldehyde, supporting safer indoor air quality.
FLAME RETARDANT
Panels rated Class B-s1, d0 according to EN 13501-1, offering high fire safety performance for walls and ceilings.
MAINTENANCE
Panels can be cleaned easily using a dust broom, vacuum cleaner, or a damp cloth.
ACOUSTIC SPECIFICATIONS
SOUND ABSORPTION
Modular PET material:
Sound class D (αw=0.30) [according to ISO 354:2003 & ISO 11654:1997]

MATERIALS AND COLORS
MATERIALS
Polyester Fiber: 100% made from recycled PET
COLORS
U01
U02
U03
U04
U05
U06
U07
U08
U09
U10
U11
U12
U13
U14
U15
U16
U17
U18
U19
U20
U21
U22
U23
U24
U25
U26
U27
U28
U29
U30
U31
U32
U33
U34
U35
U36
U37
U38
U39
U40
U41
U42
U43
U44
U45
U46
U47
U48
U49
U50
U51
U52
U53
U54
U55
U56
U57
U58
DOWNLOADS AND SAMPLES
BROCHURE
Brochure PDF
PRODUCT AVAILABILITY AND SAMPLES
UNC always have stock of the product and samples of each one of it. Feel free to contact us, in order to setting up a meeting in our showroom.
