SOUNDWALL
SOUNDWALL is acoustic panel, as wooden slats, which can be placed to ceilings or to walls and provide significant sound absorption and desired aesthetics, within various types (private, special, commercial) of rooms. The rectangular-shaped panels are being placed one next to each other, without joints in-between, resulting in a seamless-continuous run (finish) of panelling, into walls/ceilings. The SOUNDWALL is guaranteed to bring a visually eye-catching wallcovering solution to any project, through a cost-effective solution.
TECHNICAL SPECIFICATIONS
Soundwall PLUS
SUSTAINABILITY
Those panels are made from sustainable materials. The felt is made from recycled plastic and the wood from sustainable forestry.
MOISTURE RESISTANT
Wooden material has high moisture resistance due to high melamin content of resin used and so it can be also used in kitchens and bathrooms with the correct finishing.
NON TOXIC
The formaldehyde emission of wooden slats is classified E0 grade (with desiccator method).
FLAME RETARDANT
Polyester Fiber: Class B-s1, d0 [EN-13501-1]
Wood: Class B-s2, d0 [EN-13501-1]
MAINTENANCE
It can be cleaned by using a dust broom, a vacuum cleaner or a hard-wrung cloth.
STANDARD DIMENSIONS AND TYPES
Size: 2400x600mm
Total thickness: 20mm
Slat width: 30mm
Slat to slat: 10mm
Surface material
MDF or Iroko or Oak (8mm)
Back material
PET acoustic panel (12mm)
Soundwall PLUS
Additional backing material
Mineral wool (50mm)
* Can also be customized depending on the requirements of each application.

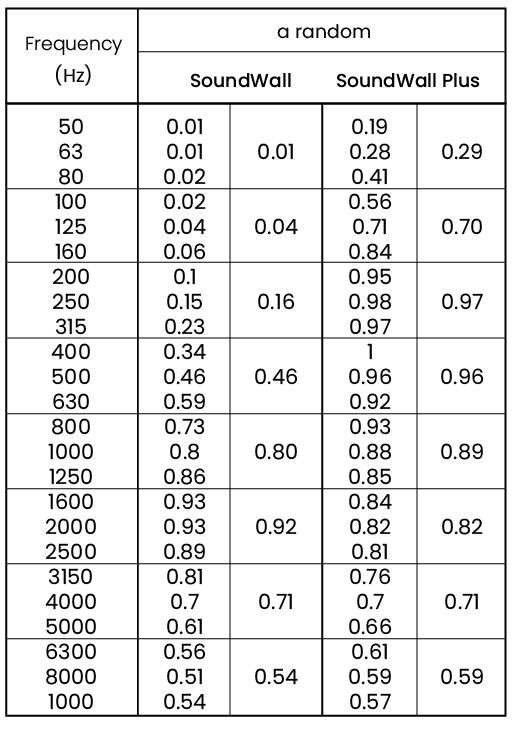

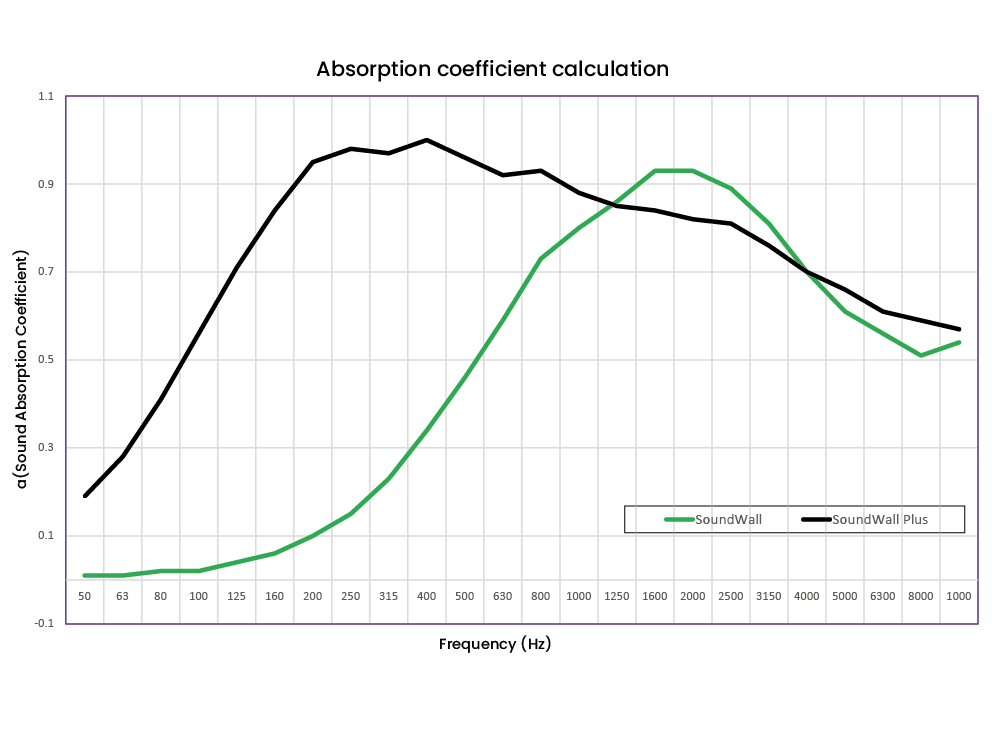

ACOUSTIC SPECIFICATIONS
SOUND ABSORPTION
Sound class D (αw=0.45)
[according to specialised
acoustic software]
(system total thickness 20mm)
Sound class B (αw=0.85)
[according to specialised
acoustic software]
material of mineral wool 50mm)
COLORS AND MATERIALS
COLORS
FRONT
OPTION 1: MDF coloured or Ash or Iroko or White Oak
ASH
IROKO
WHITE OAK
OPTION 2:
Colour MDF Veneered
BLACK
GREY
LIGHT GREY
*Other upon request
BROWN
BLUE
GREEN
RED
ORANGE
YELLOW
BACK
100% Polyester Fiber Board 12mm
BLACK
GREY
WHITE
*Other upon request
Consistent colour distribution from surface to all the way through. Variety of colours as option enable creation, based on client’s willing and project requirements.
COLOURS NOTES
*Boards can present colour variations due to the wood’s natural changes of tone and to the use of organic dyes only.
*The tone of the surface may applied (varnish, oil, wax).
MATERIAL
The panels are manufactured as a combination of polyester fiber (PET) and coloured MDF or Veneered MDF and supplied/installed as pre-assembled panels.
DOWNLOADS AND SAMPLES
BROCHURE
PRODUCT AVAILABILITY AND SAMPLES
UNC always have stock of the product and samples of each one of it. Feel free to contact us, in order to setting up a meeting in our showroom.
