LINEAR

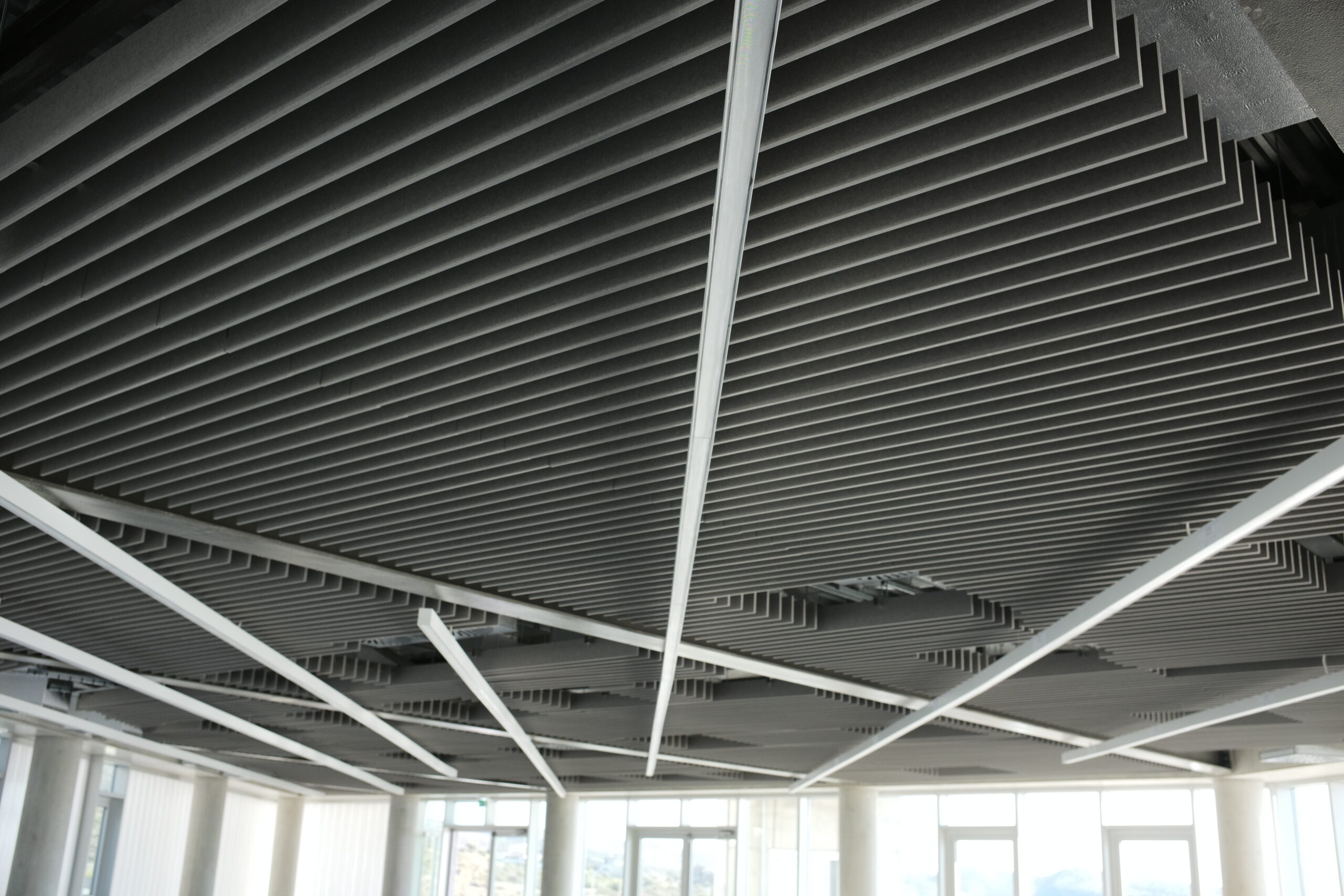

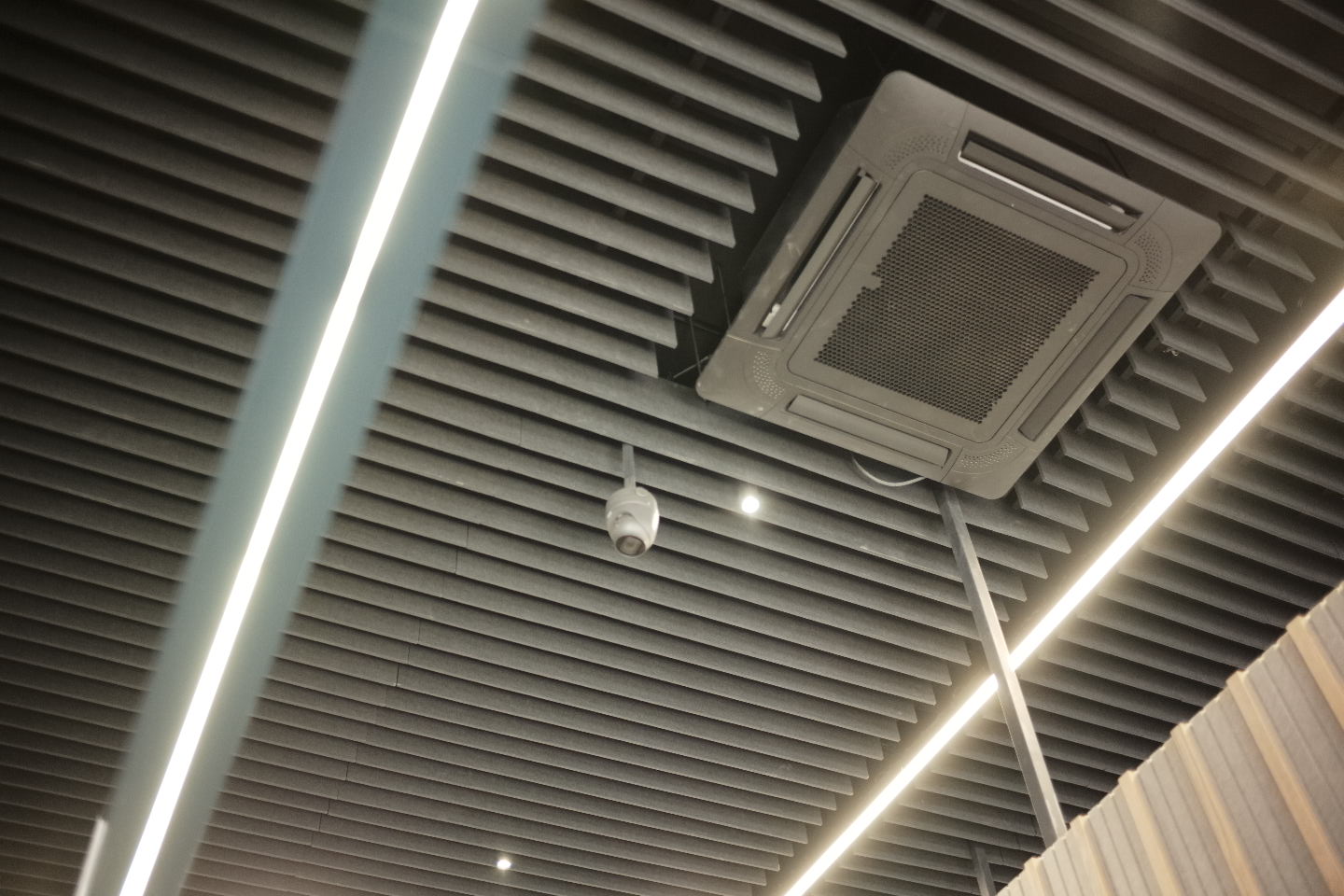

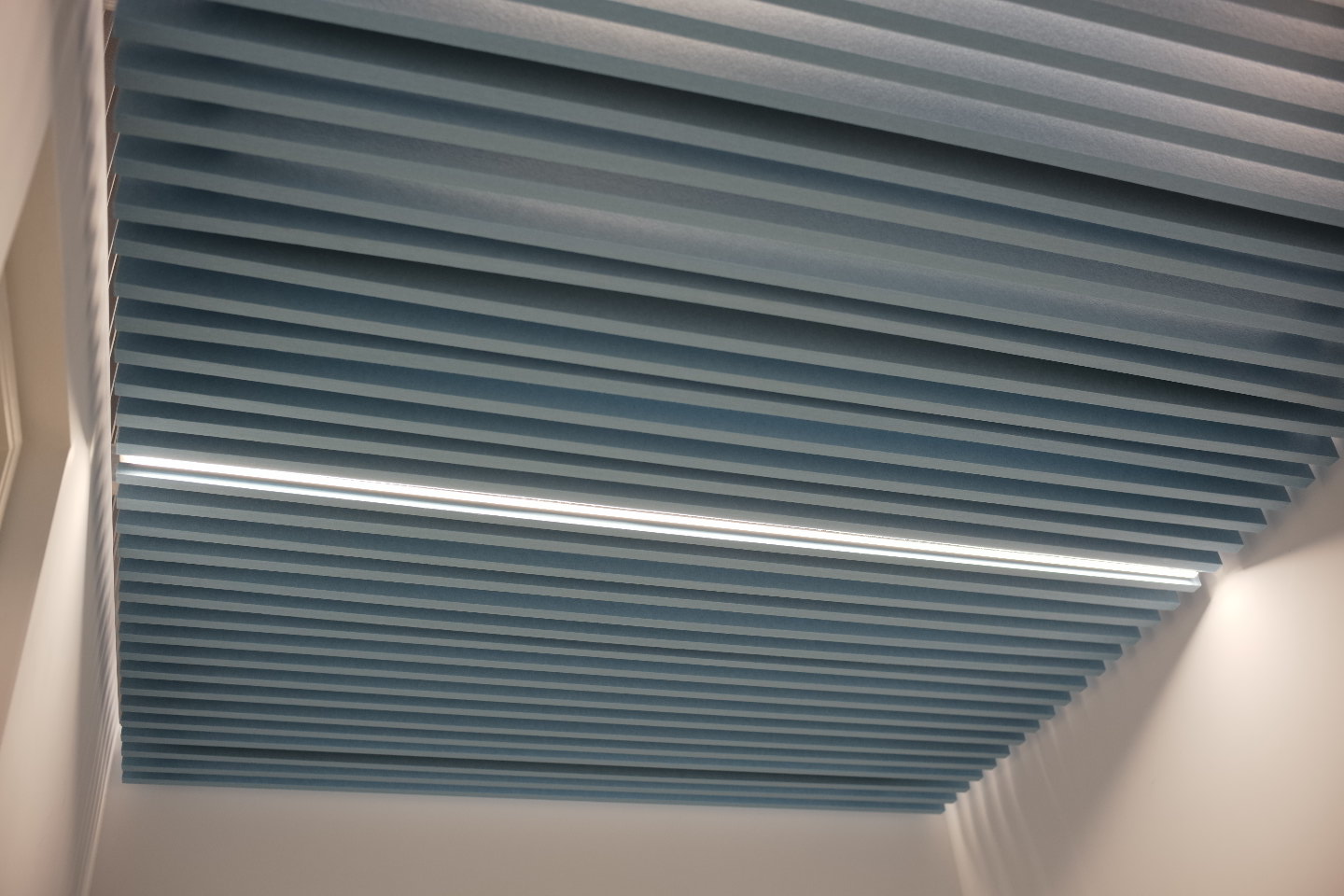

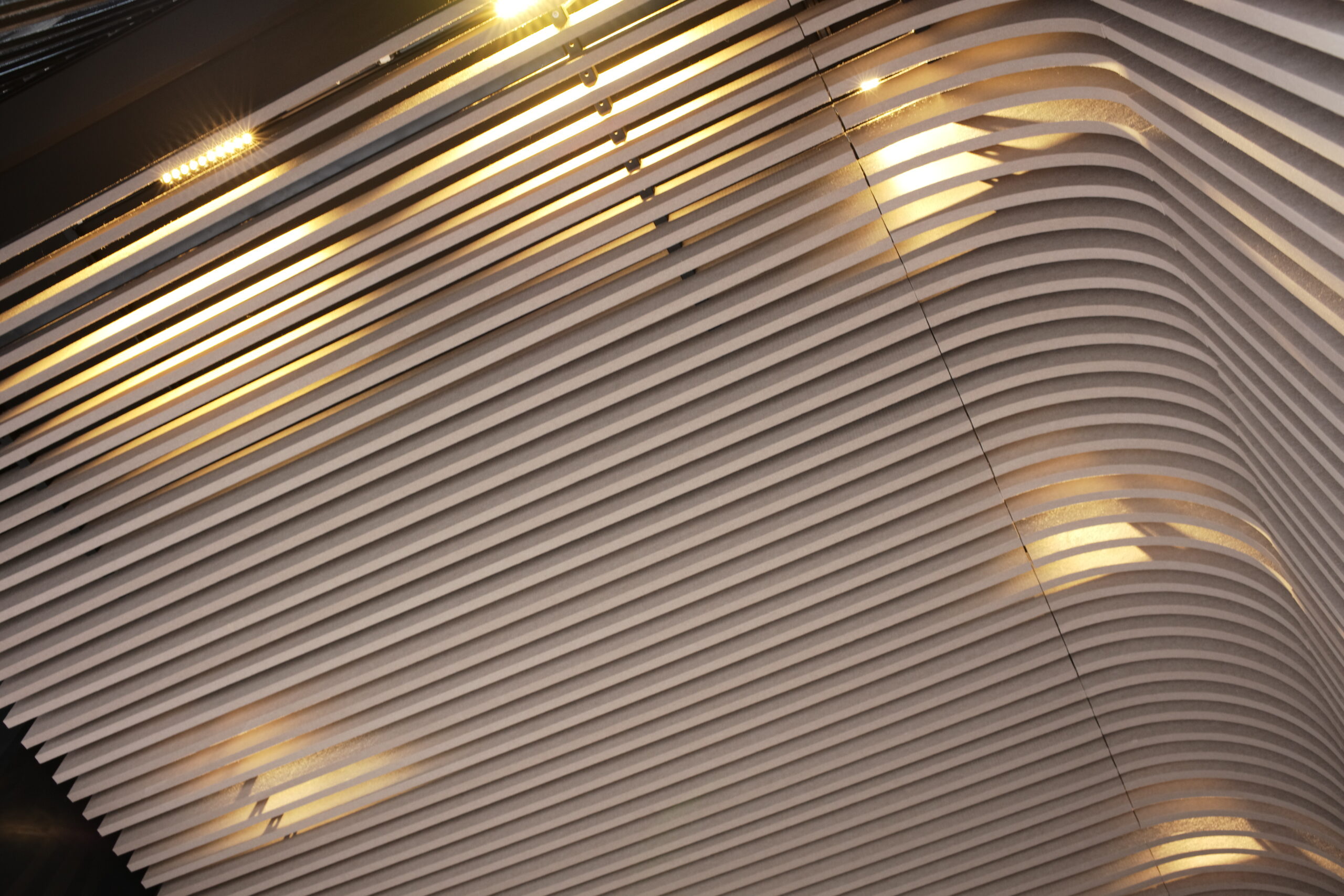

A modular ceiling system, a lightweight hanging baffle system made by 100% recycled PET, which can be placed to ceiling and provide significant sound absorption and desired aesthetics, within various types (private, special, commercial) of rooms. The system can act as a false ceiling in a space/room and integrate in between/above of it, services as HVAC units, lights, fire water sprinklers, speakers and others. The M-SYSTEM is guaranteed to bring a visually eye-catching ceiling solution to any project, through a cost-effective solution.
TECHNICAL SPECIFICATIONS
SUSTAINABILITY
Those panels are made from sustainable materials. Panels are made from 100% polyester fiber. Containing a minimum of 75% post-consume recycled material (PET bottle-flake).
NON TOXIC
BS EN 717-1 E0 Formaldehyde -free environmental test. It does not contain chemical binders including formaldehyde and support safer indoor air quality.
FLAME RETARDANT
Class B-s1, d0 [EN-13501-1]
MAINTENANCE
It can be cleaned by using a dust broom, a vacuum cleaner or a hard-wrung cloth.
STANDARD DIMENSIONS AND TYPES
Module size: 1938x2400mm
Height of baffles: 160mm
Gap between baffles: 40mm or 90mm
Thickness of baffles: 12mm or 24mm
Support type: Galvanised steel structure
Hanged method: Galvanised long threaded screw
Hanged height: Flexible (according to needs)
ACOUSTIC SPECIFICATIONS
SOUND ABSORPTION
M-SYSTEM Linear Material 12mm:
Sound class D (αw=0.30)
[according to ISO 354:2003 & ISO 11654:1997]
M-SYSTEM Linear Material 24mm:
Sound class C (αw=0.61)
[according to ISO 354:2003 & ISO 11654:1997]
COLORS AND MATERIALS
COLORS
Ask for availability in stock for time planning.
U01
U02
U03
U04
U05
U06
U07
U08
U09
U10
U11
U12
U13
U14
U15
U16
U17
U18
U19
U20
U21
U22
U23
U24
U25
U26
U27
U28
U29
U30
U31
U32
U33
U34
U35
U36
U37
U38
U39
U40
U41
U42
U43
U44
U45
U46
U47
U48
U49
U50
U51
U52
U53
U54
U55
U56
U57
U58
MATERIAL
Polyester Fiber: 100% made from recycled PET
DOWNLOADS AND SAMPLES
BROCHURE
PRODUCT AVAILABILITY AND SAMPLES
UNC always have stock of the product and samples of each one of it. Feel free to contact us, in order to setting up a meeting in our showroom.
