ENGRAVE PANELS

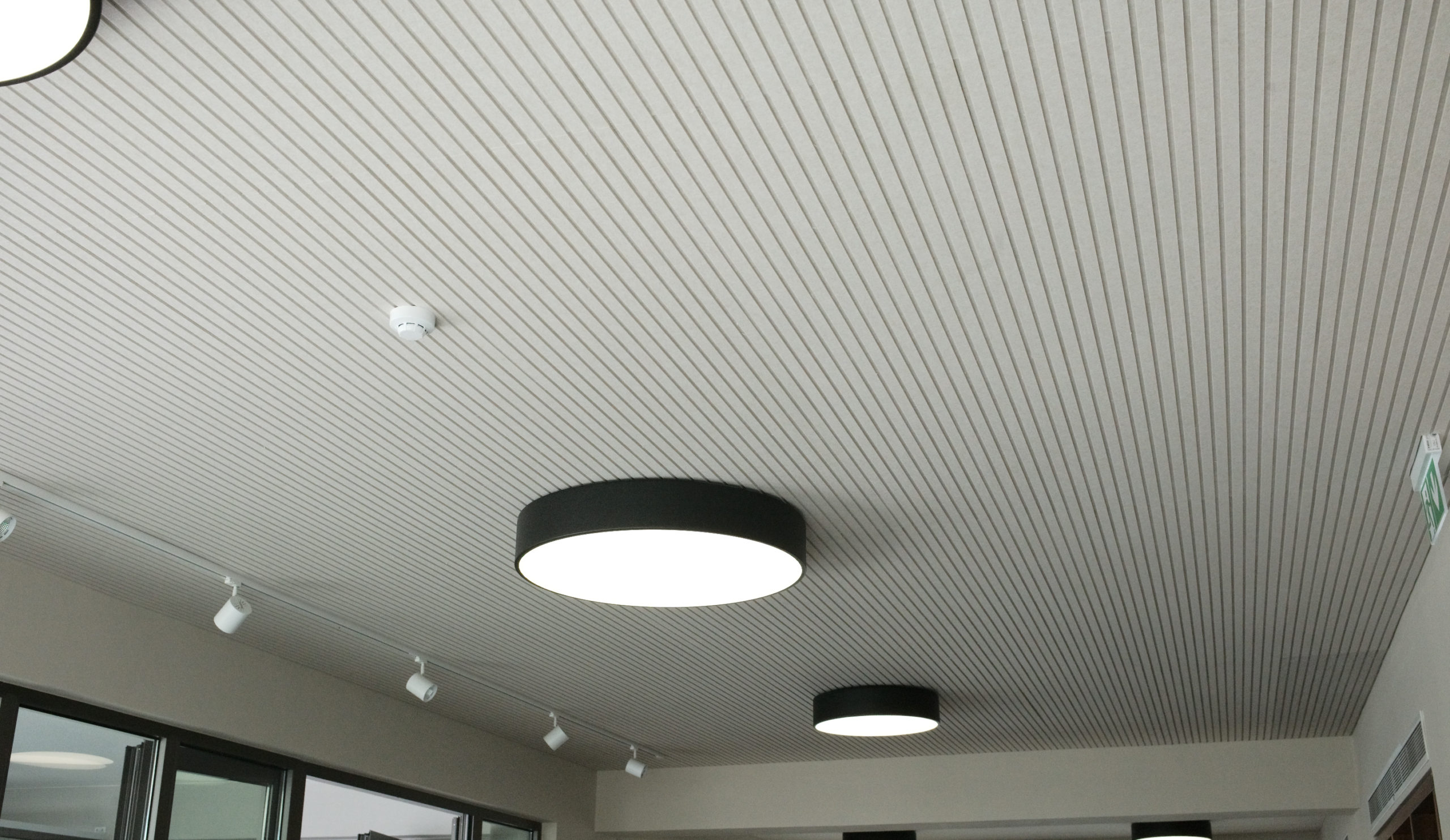

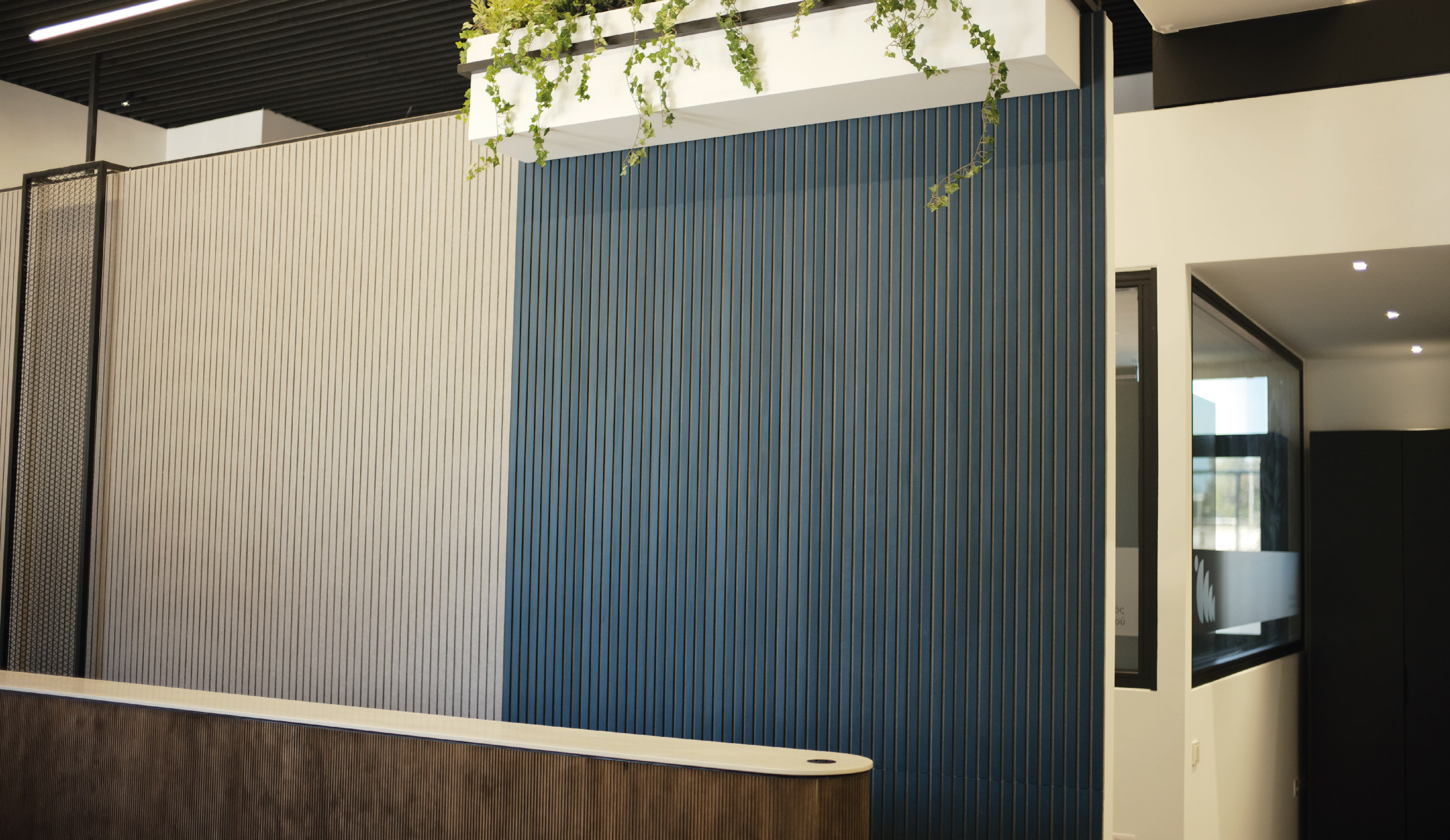

Acoustic panels available in five formats — 30×10, 44×16, 24×16, 100×20, and 190×10 — designed to deliver effective sound absorption while creating a seamless, continuous finish across walls or ceilings.

The panels are manufactured in two thickness options, allowing the acoustic performance to be tailored to the specific requirements and spatial constraints of each project. A wide range of colours provides design flexibility for consultants, architects, and clients.

AVAILABLE SIZES

30 - 10mm

Panel: 240x60cm

Shape characteristics: 3cm solid – 1cm engrave

Thickness: 12 mm or 24 mm

44-16mm

Panel: 240 x 60 cm

Shape characteristics: 4.4 cm solid -1.6 cm engrave

Thickness: 12 mm or 24 mm

24-16mm

Panel: 240 x 60 cm

Shape characteristics: 2.4 cm solid -1.6 cm engrave

Thickness: 12 mm or 24 mm

100-20mm

Panel: 240 x 60 cm

Shape characteristics: 10 cm solid – 2 cm engrave

Thickness: 12 mm or 24 mm

190-10mm

Panel: 240 x 60 cm

Shape characteristics: 19 cm solid -10 cm engrave

Thickness: 12 mm or 24 mm

TECHNICAL DATA

TECHNICAL SPECIFICATIONS

INSTALLATION

Installation can be carried out by mechanical fixing or adhesive bonding to walls or ceilings.

SUSTAINABILITY

Panels manufactured from 100% polyester fibre, containing a minimum of 75% post-consumer recycled PET sourced from recycled plastic bottles.

NON TOXIC

Tested according to BS EN 717-1 (E0) for formaldehyde emissions. The panels contain no chemical binders or formaldehyde, supporting safer indoor air quality.
