Modular

A modular ceiling system, a lightweight hanging baffle system made by 100% recycled PET, which can be placed to ceiling and provide significant sound absorption and desired aesthetics, within various types (private, special, commercial) of rooms. The system can act as a false ceiling in a space/room and integrate in between/above of it, services as HVAC units, lights, fire water sprinklers, speakers and others. The M-SYSTEM is guaranteed to bring a visually eye-catching ceiling solution to any project, through a cost-effective solution.

TECHNICAL SPECIFICATIONS

NON TOXIC

BS EN 717-1 E0 Formaldehyde -free environmental test. It does not contain chemical binders including formaldehyde and support safer indoor air quality.

MAINTENANCE

It can be cleaned by using a dust broom, a vacuum cleaner or a hard-wrung cloth.

SUSTAINABILITY

Those panels are made from sustainable materials. Panels are made from 100% polyester fiber. Containing a minimum of 75% post-consume recycled material (PET bottle-flake).

FLAME RETARDANT

Class B-s1, d0 [EN-13501-1]

CROSS MODULAR

STANDARD DIMENSIONS AND TYPES

Module sizes: 1060x1060mm & 2120x2120mm
Baffles Thickness: 12mm
Hanged method: Galvanised steel hook and wire rope
Hanged height: Flexible (according to needs)

ARC MODULAR

STANDARD DIMENSIONS AND TYPES

Module sizes: 1060x1060mm & 2120x2120mm
Baffles Thickness: 12mm
Hanged method: Galvanised steel hook and wire rope
Hanged height: Flexible (according to needs)

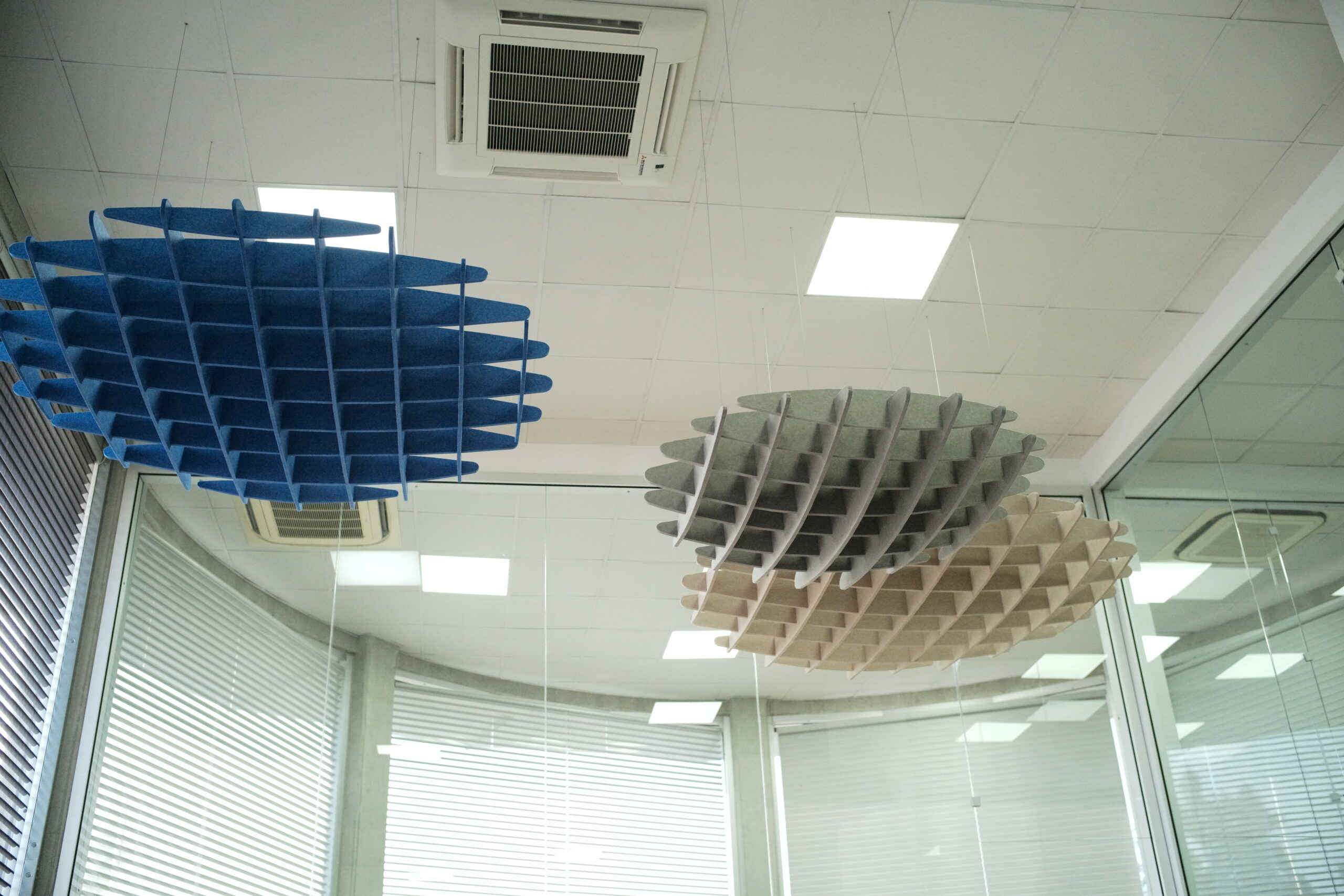

CURVED MODULAR

STANDARD DIMENSIONS AND TYPES

Module sizes: Ø 1200mm & Ø 1800mm
Baffles Thickness: 12mm
Hanged method: Galvanised steel hook and wire rope
Hanged height: Flexible (according to needs)

EDGY MODULAR

STANDARD DIMENSIONS AND TYPES

Module sizes: Ø 1200mm & Ø 1800mm
Baffles Thickness: 12mm
Hanged method: Galvanised steel hook and wire rope
Hanged height: Flexible (according to needs)
