FSS

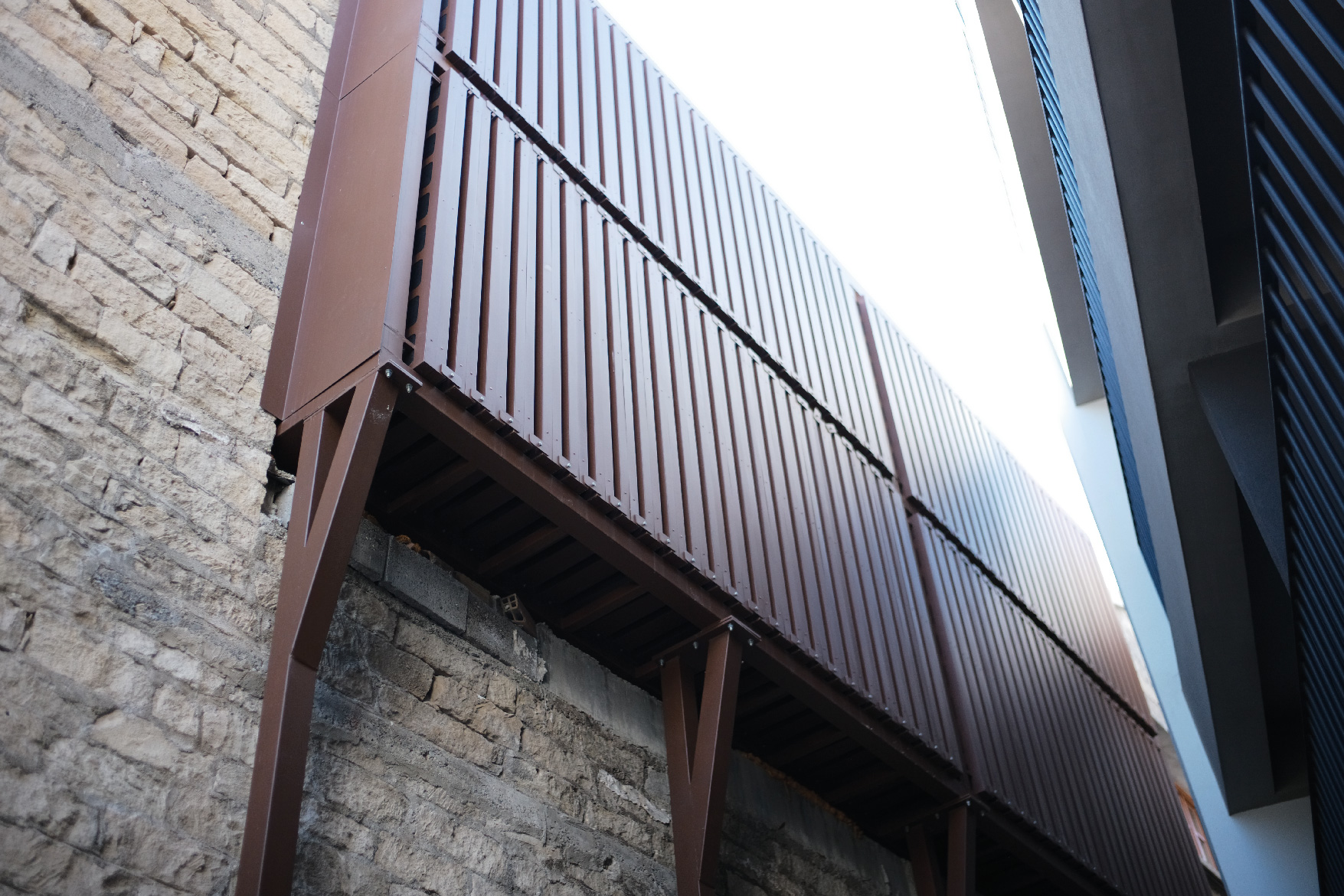

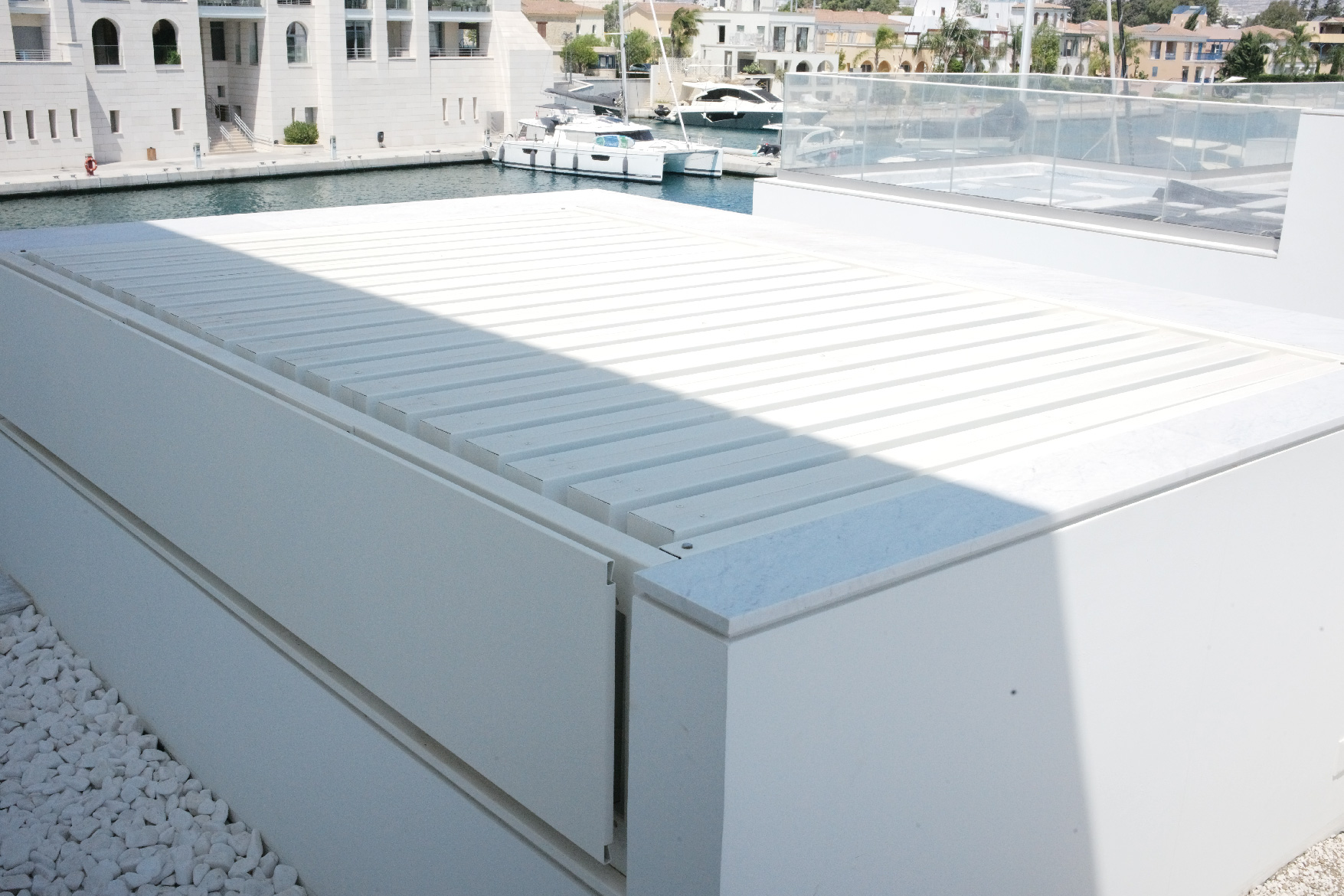

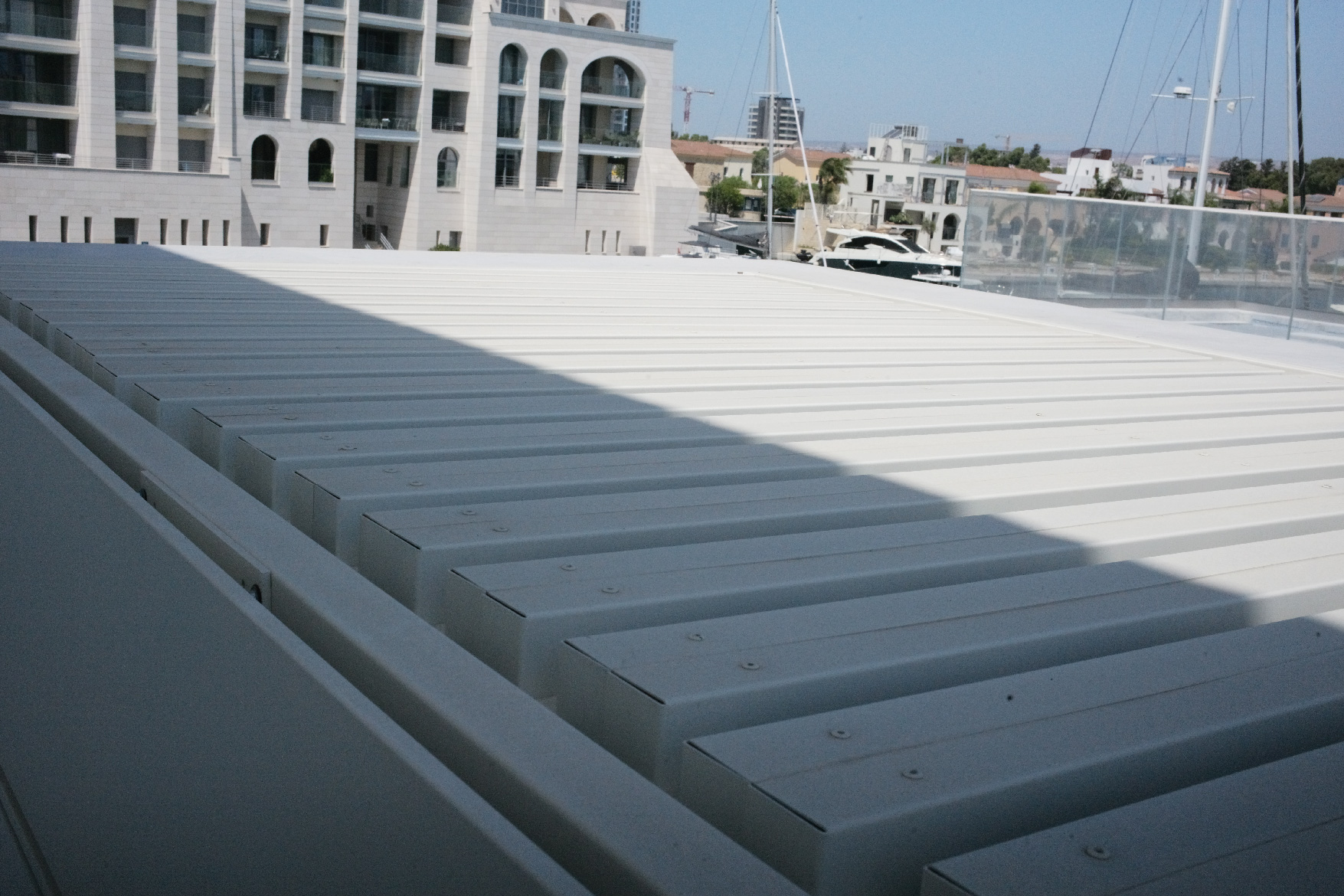

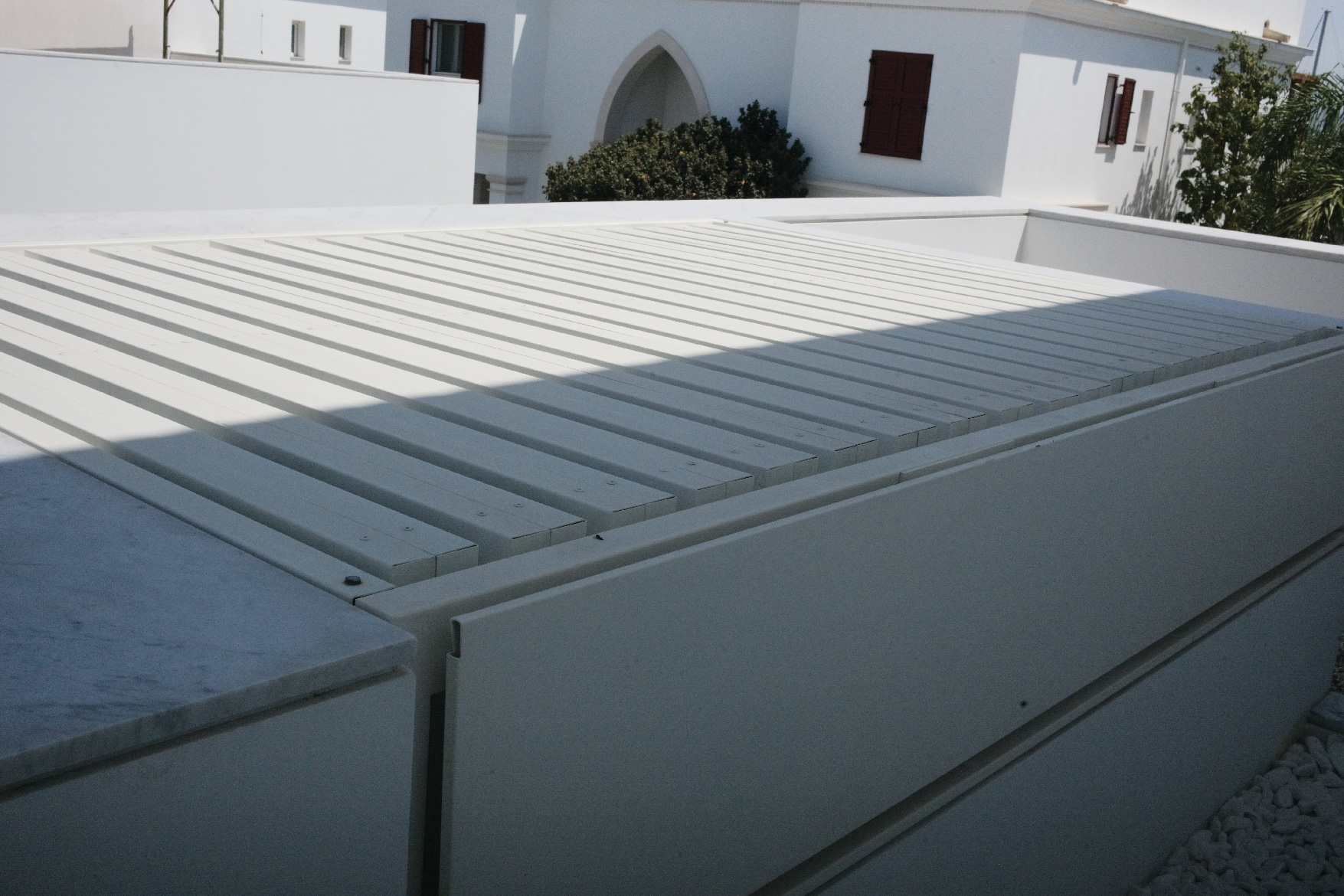

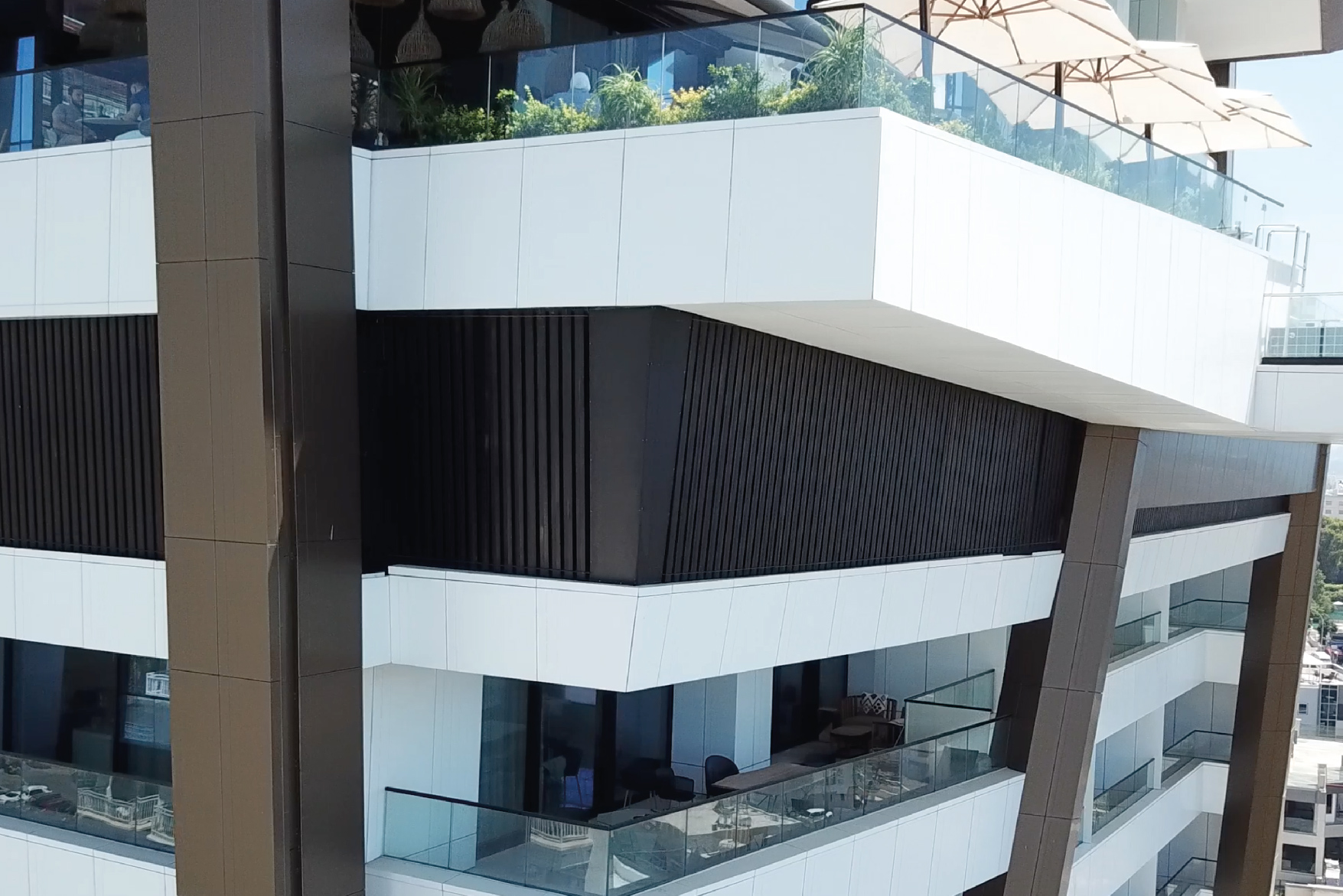

The Splitter Silencer System (FSS) is engineered for high-performance sound attenuation and natural ventilation in plant rooms, mechanical levels, and equipment areas. The system combines aluminum silencers with a galvanised steel supporting structure for durability and structural integrity.

All components are painted with Electrostatic Powder Coating for enhanced protection and longevity, to meet project requirements and environmental conditions. Additionally, a protective hood or wire mesh can be installed to prevent intrusion by birds and insects.

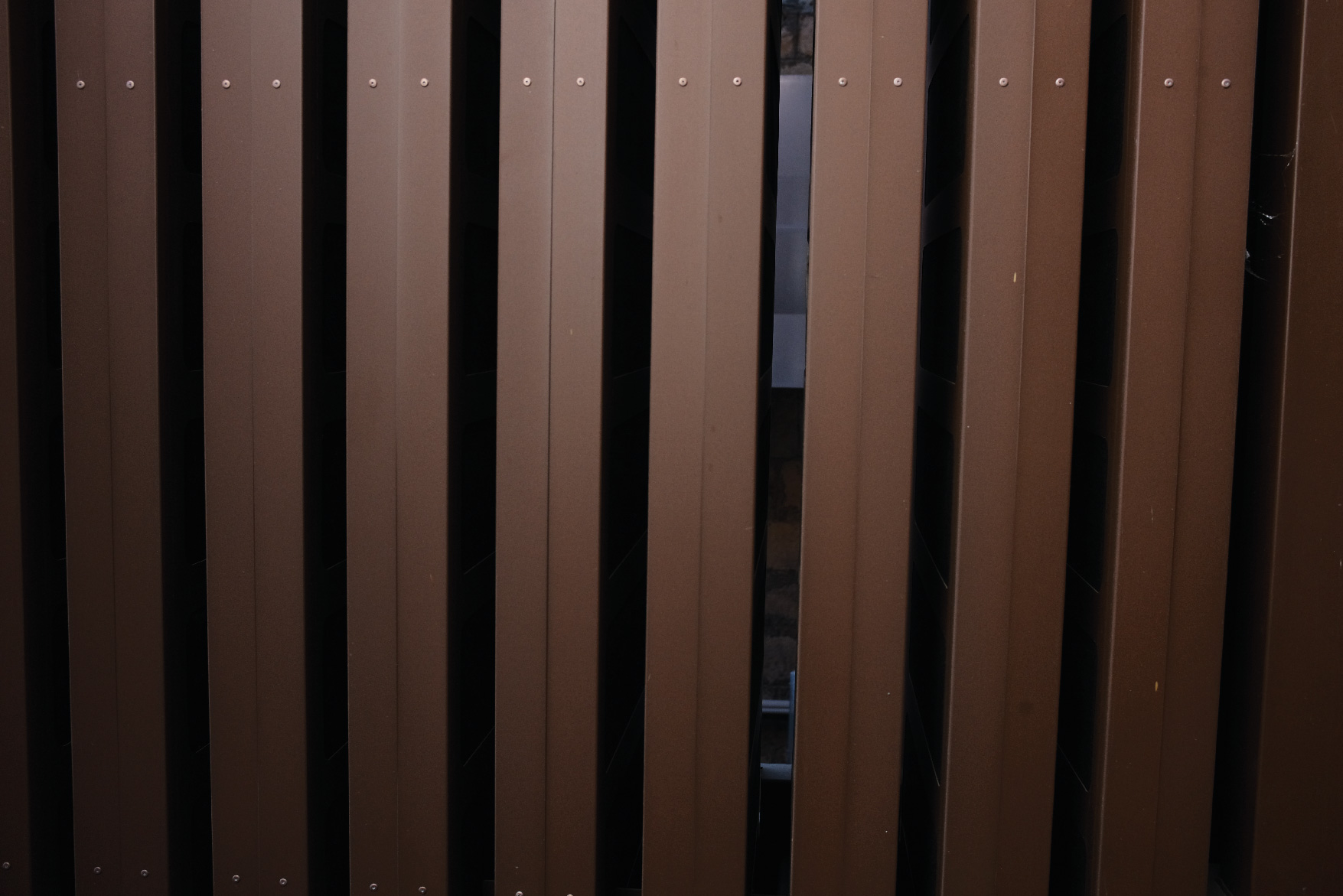

The system is scientifically designed to achieve an optimal balance of acoustic performance, low pressure drop, and rain protection, making it suitable for industrial environments. Its modular construction consists of custom-made splitter silencers, allowing flexible configurations for diverse industrial applications.

A laser-cut bracket system enables customized mounting on existing façade openings or pre-fabricated steel structures, simplifying installation and integration.

VIEW

AVAILABLE SIZES

Standard dimensions:
Height: Up to 285cm
Depth: 60cm
*Other sizes upon request
Splitters width: 10cm
Splitter to splitter gap: 5cm
Facade opening area: 33%

Typical Applications

Mechanical Rooms
Generator Rooms
Roof MEP Installations
Mechanical Levels Facade
Workshop Fresh Air Inlets/Outlets

Parts

TECHNICAL DATA

TECHNICAL SPECIFICATIONS

INSTALLATION

Installation is achieved by mechanically mounting metal brackets within a steel frame structure.

STRUCTURAL DESIGN

System structural calculations and analysis, as per report, based on CYS and other standards.

TECHNICAL DOCUMENTATION

Technical brochures, material inspections, and specification certificates are available for each system component.

WEATHER-COASTAL CONDITIONS

Suitable for outdoor installations, including exposure to coastal environments.

MAINTENANCE

It can be cleaned by using a dust broom, a vacuum cleaner or a hard-wrung cloth.

PRESSURE DROP – DIFFERENTIAL PRESSURE

Calculated for each project based on airflow, opening area, and relevant system properties.

Supporting structure

Galvanised steel construction ensures durability, while brackets, stoppers, and clips provide stability and easy maintenance. Custom-designed to meet project and consultant requirements.

ACOUSTIC SPECIFICATIONS

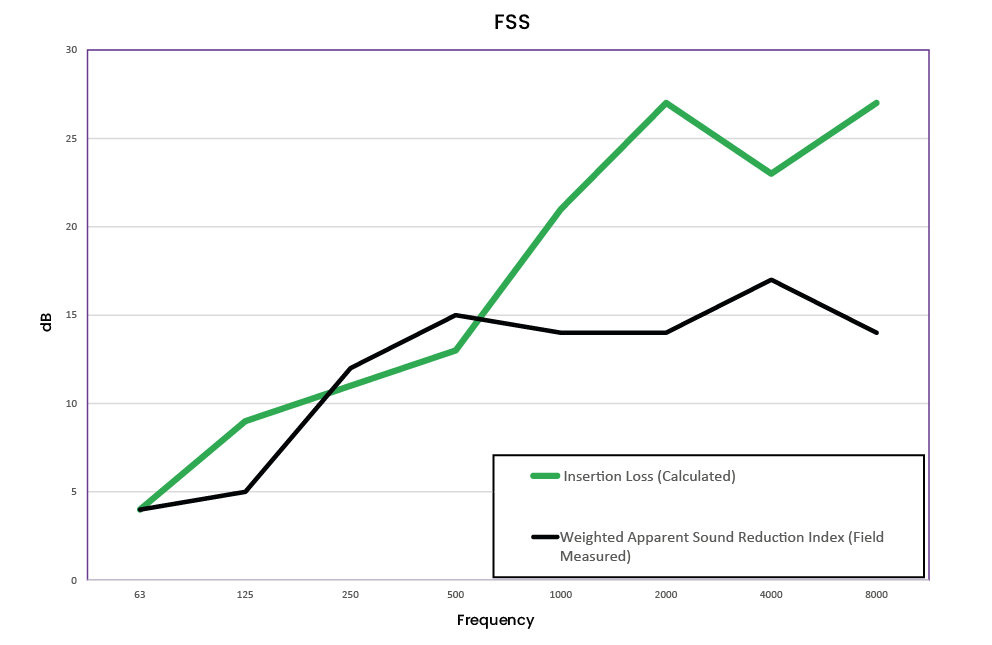

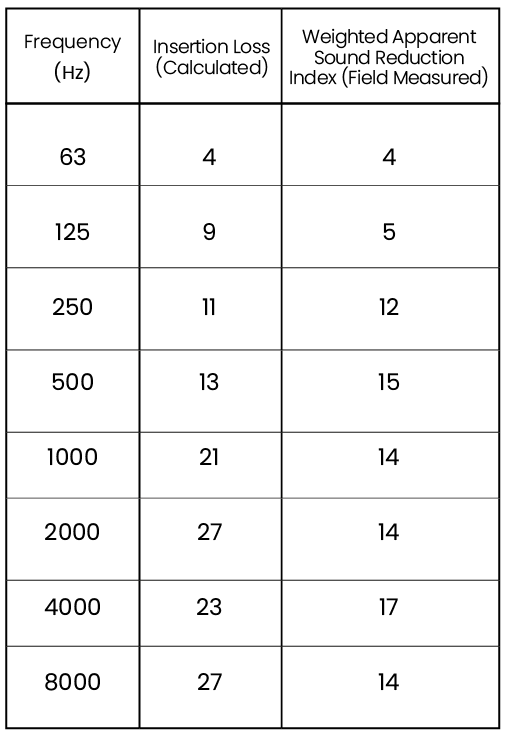

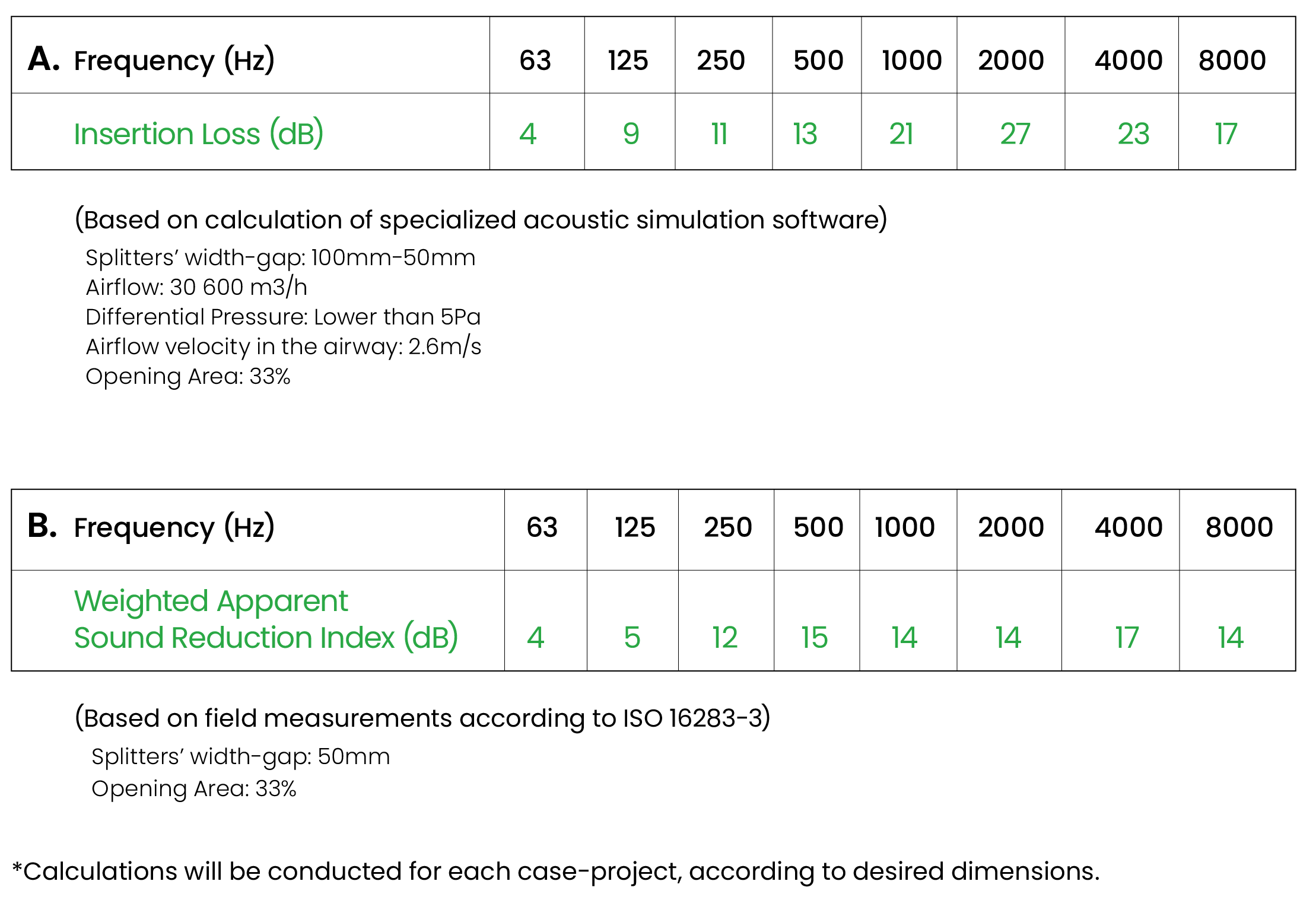

SOUND ATTENUATION

FSS of standard dimensions H-D-W-G: 2600-600-100-50mm

MATERIALS AND COLORS

MATERIALS

SUPPORTING STRUCTURE:
– Supporting structure and brackets-stoppers-clips are made of galvanised steel.
– Steel structure design according to project needs and other consultants’ specifications.
– Brackets, stoppers & clips for stability and removal (maintenance) purpose.
