DESK DIVIDERS

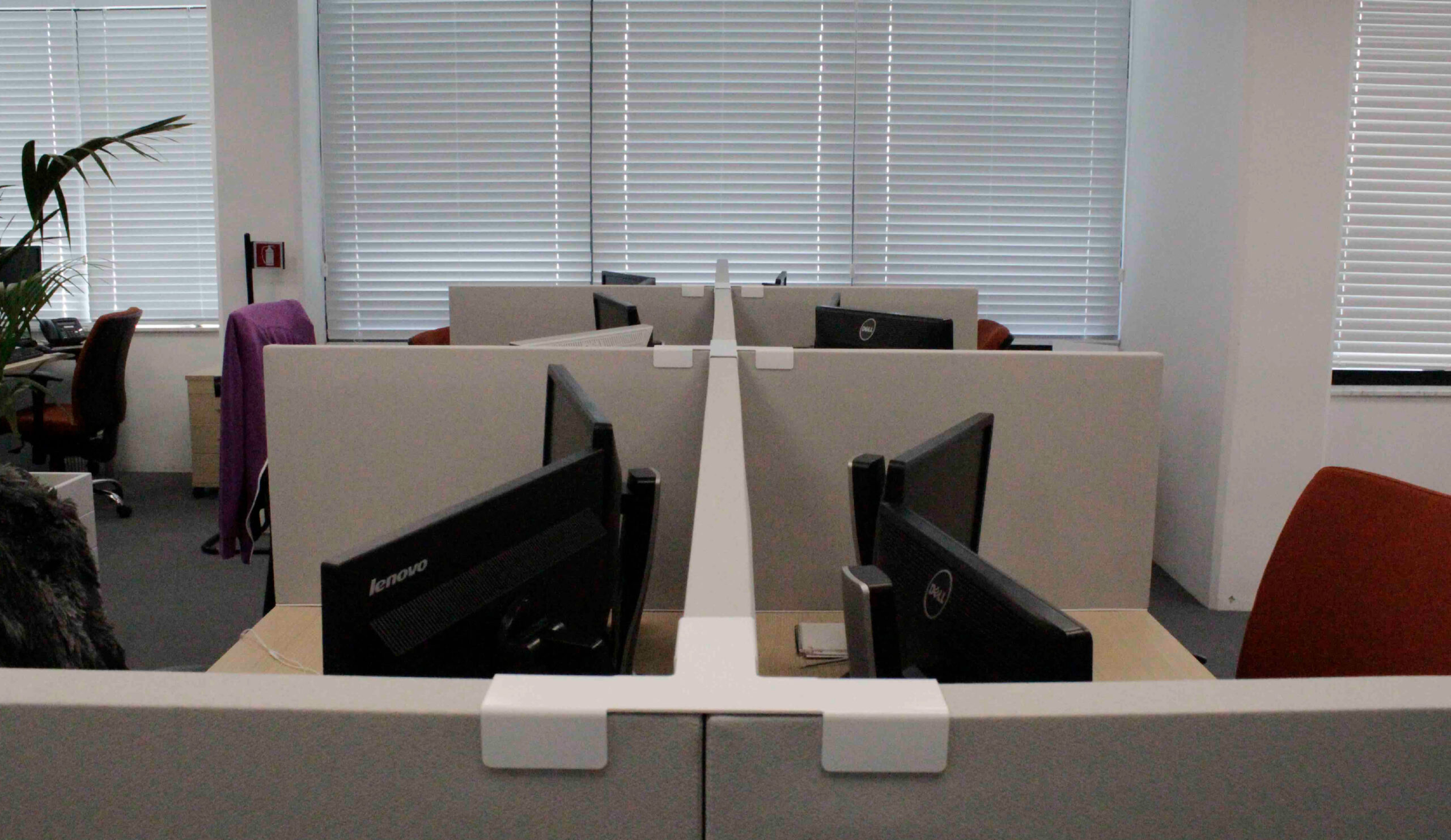

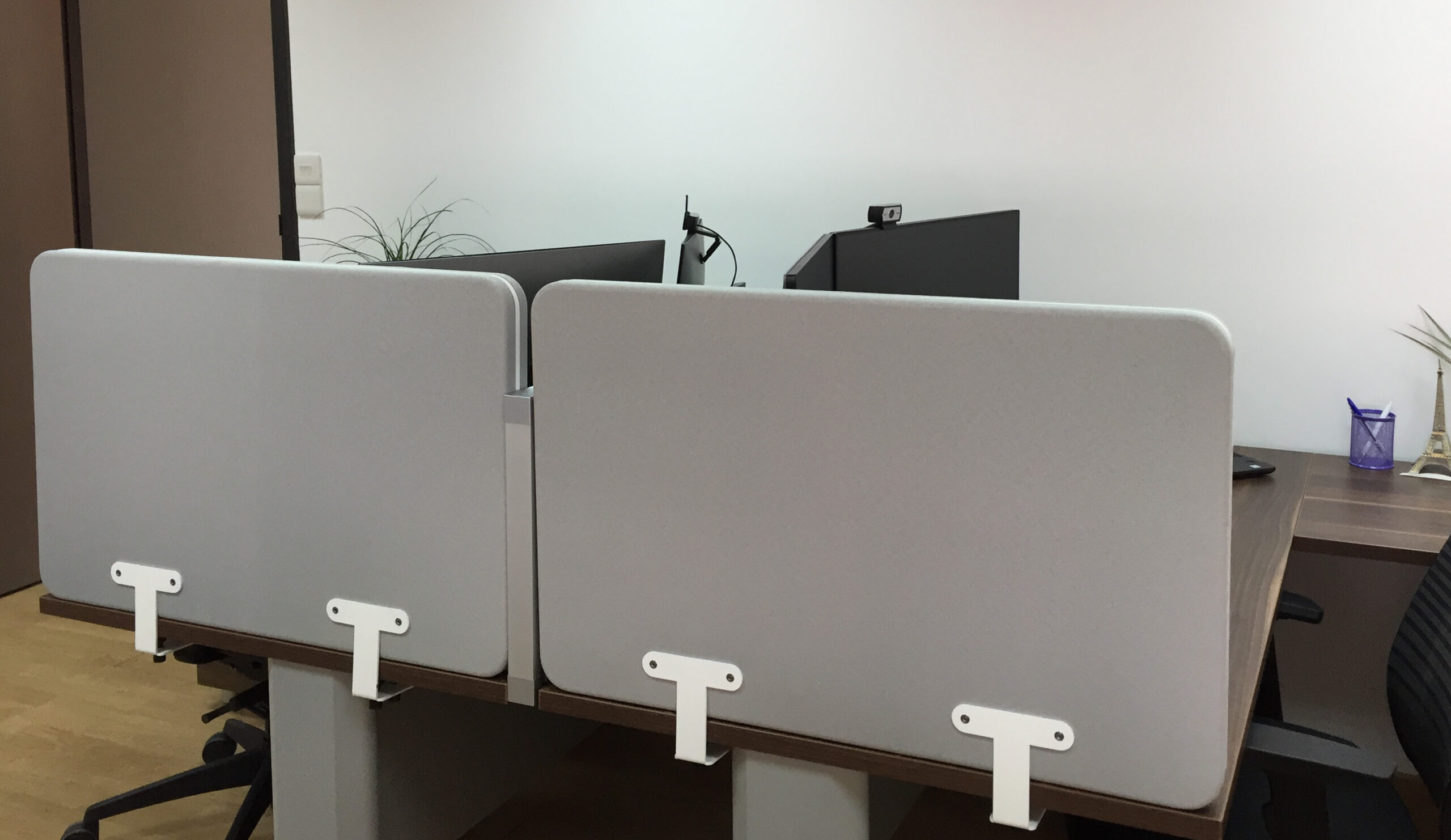

It is commonly accepted that noise is unwanted sound and if the background noise level is too high, productivity and health likely to suffer. Acoustic screens are amongst the main solutions that reduce noise and create desired privacy in open-plan offices. UNC DESK DIVIDERS 301 & 303 are made of wooden frame, rockwool as inside core and specialised acoustic textile as upholstered material. Powder painted metal base is being used. Variety in colour of fabric/base and dimensions enable creation of a convenient product, based on client’s taste and project’s requirements.

NScreen 301

STANDARD DIMENSIONS AND TYPES

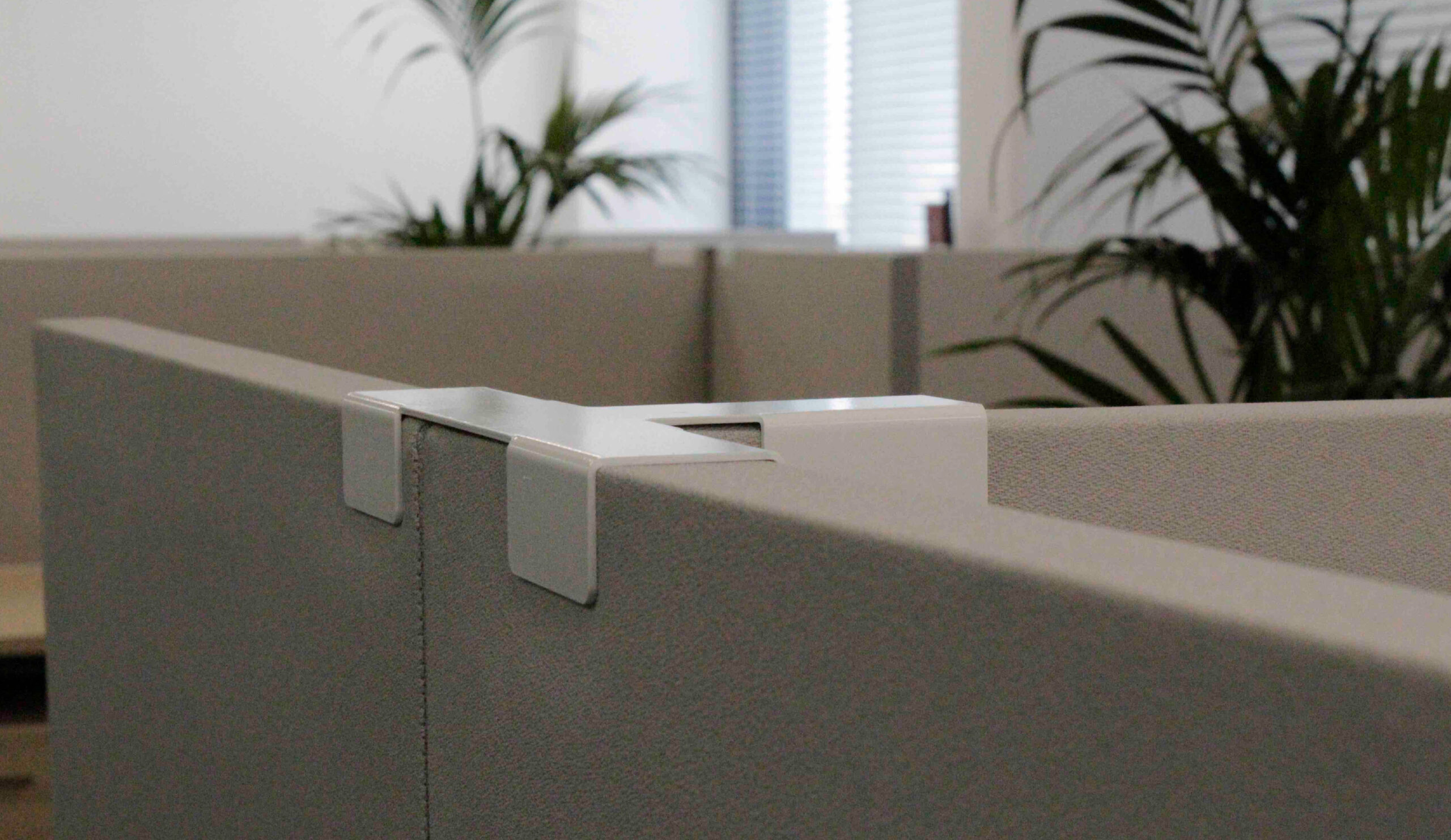

Type of connectors:

L connector
T connector
Cross connector
I connector

Sizes:

A) 550mm height / 750mm length / 42mm width

B) 550mm height / 1200mm length / 42mm width

C) 550mm height / 1400mm length / 42mm width

D) 550mm height / 1600mm length / 42mm width

NScreen 303

STANDARD DIMENSIONS AND TYPES

Type of connectors:

L connector
T connector
I connector
Cross-04 connector
Cross-03 connector

Sizes:

A) 550mm height / 750mm length / 47mm width

B) 550mm height / 1200mm length / 47mm width

C) 550mm height / 1400mm length / 47mm width

D) 550mm height / 1600mm length / 47mm width

TECHNICAL DATA

TECHNICAL SPECIFICATIONS

SUSTAINABILITY (fabric)

The Global Recycled Standard (GRS) certificate confirms extensive use of recycled materials for the fabric. A production of completely free of PVC, with steadily increasing use of recycled polyester as the basis of our textile production.


CERTIFICATIONS (Fabric)

Sanitized®, OEKO-TEX®, CE, VOC, I AC Gold®, REACH, DI-NO, PVC-free, GRS


FLAME RETARDANT (fabric)

Class B-s1, d0 [EN-13501-1]


MAINTENANCE (fabric)

It can be easily cleaned by using clothes brush, microfiber cloth or rubber eraser.

ACOUSTIC SPECIFICATIONS

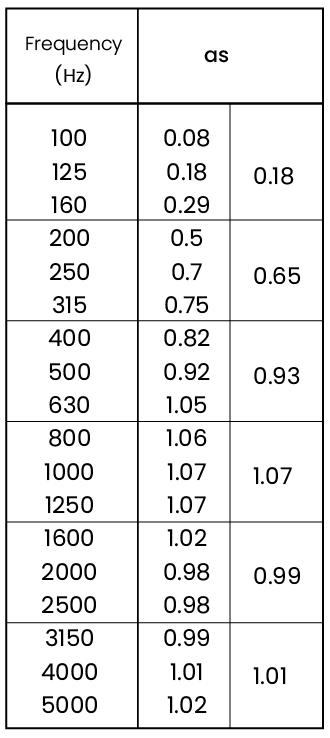

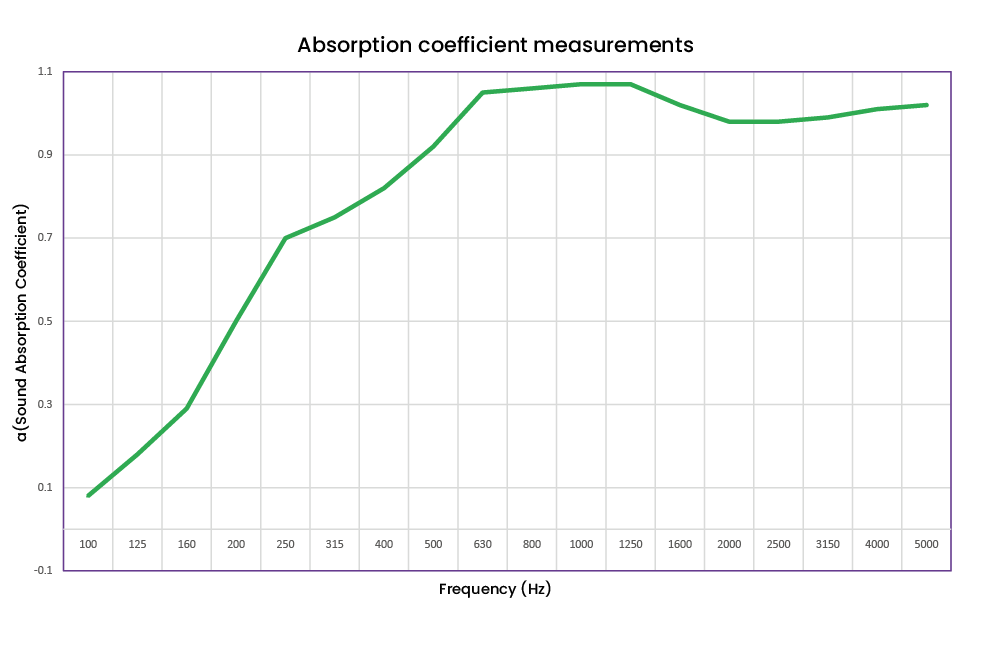

Sound Absorption:
Class A (αw=0.90)
[according to DIN EN ISO 354]
In-situ attenuation:
DPa=6-10dB
[according to BS EN ISO 11821]

MATERIALS AND COLORS

COLORS

162

235

303

309

329

331

347

440

466

541

545

628

638

642

727

731

DOWNLOADS AND SAMPLES

BROCHURE

Stand Alones Brochure PDF

PRODUCT AVAILABILITY AND SAMPLES

UNC always have stock of the product and samples of each one of it. Feel free to contact us, in order to setting up a meeting in our showroom.
